Mechanical life

1x10^6

The coil voltage rating

12V DC

Voltage resistance (contact)

500Vrms

Electrical life

1x10^5

Contact materials

Ag alloy(Cadmium free)

Inductive voltage

Under DC8V

Terminal shape

Plug-in

The attachment

-

The rated control capacity (resistance load)

20A,12V DC

Protect the structure

Sealed

The characteristics of

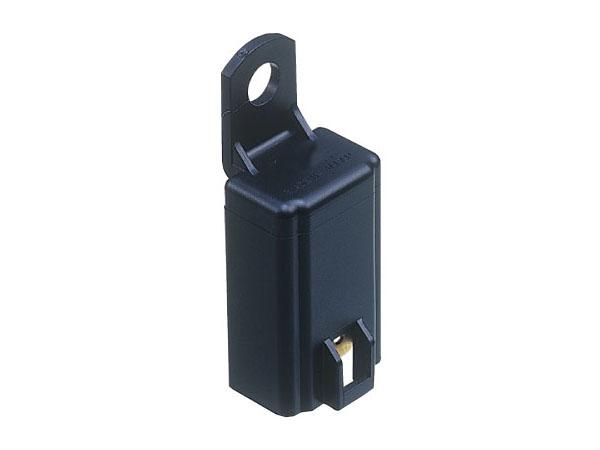

Small, lightweight vehicle power relay

The rated power consumption

1800mW

Contact structure

1b

Minimum applicable load (resistance load)

1A 12V DC

Using the environment temperature

-30℃～+80℃

Contact materials

BBM

Action function

Single side stable

Order product no

ACA22535

The release of the voltage

DC0.6～6V

Resistance to voltage (between contact and coil)

500Vrms
