Mechanical life

1x10^6

The coil voltage rating

12V DC

Voltage resistance (contact)

500Vrms

Contact materials

Ag alloy(Cadmium free)

Action function

Single side stable

Inductive voltage

Under DC8V

Terminal shape

Plug-in

The rated control capacity (resistance load)

30A,12V DC

Protect the structure

Sealed

The characteristics of

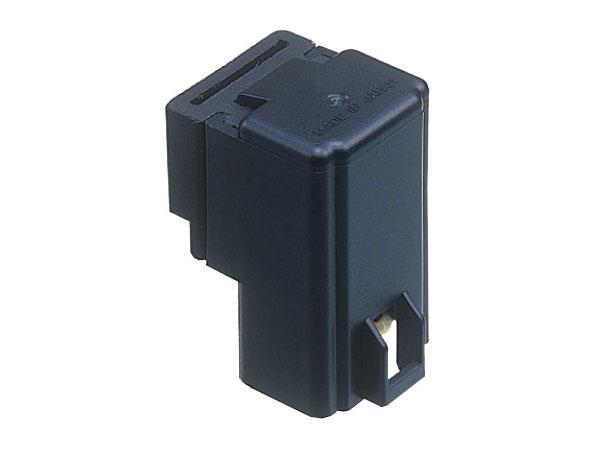

Small, lightweight vehicle power relay

The rated power consumption

1800mW

Contact structure

1a

Minimum applicable load (resistance load)

1A 12V DC

Using the environment temperature

-30℃～+80℃

Electrical life

20000

Contact materials

BBM

Order product no.

ACA12115

Resistance to voltage (between contact and coil)

500Vrms

The attachment

-

The release of the voltage

DC0.6～6V
